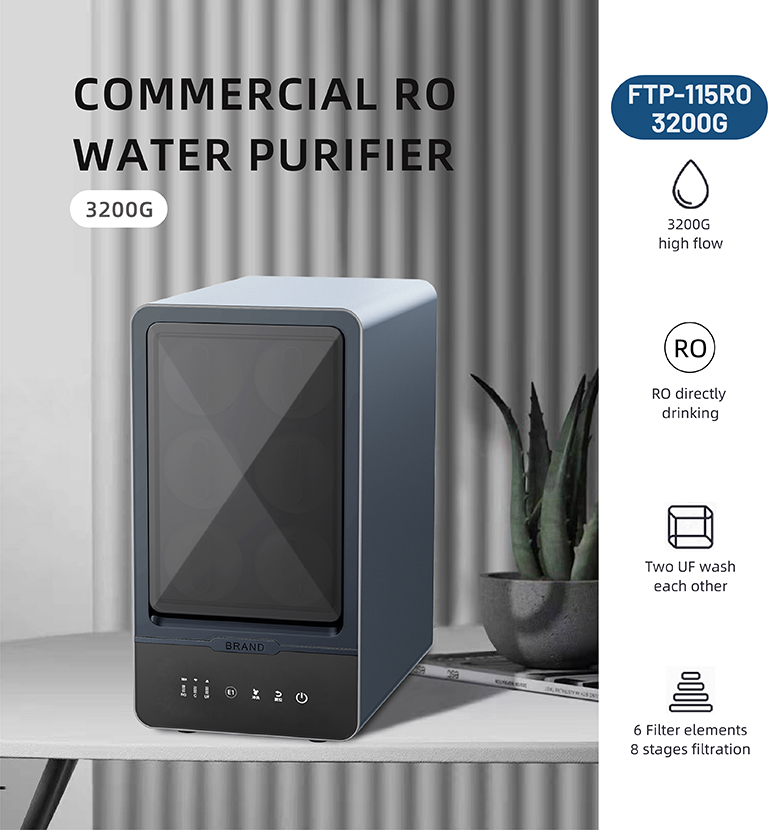

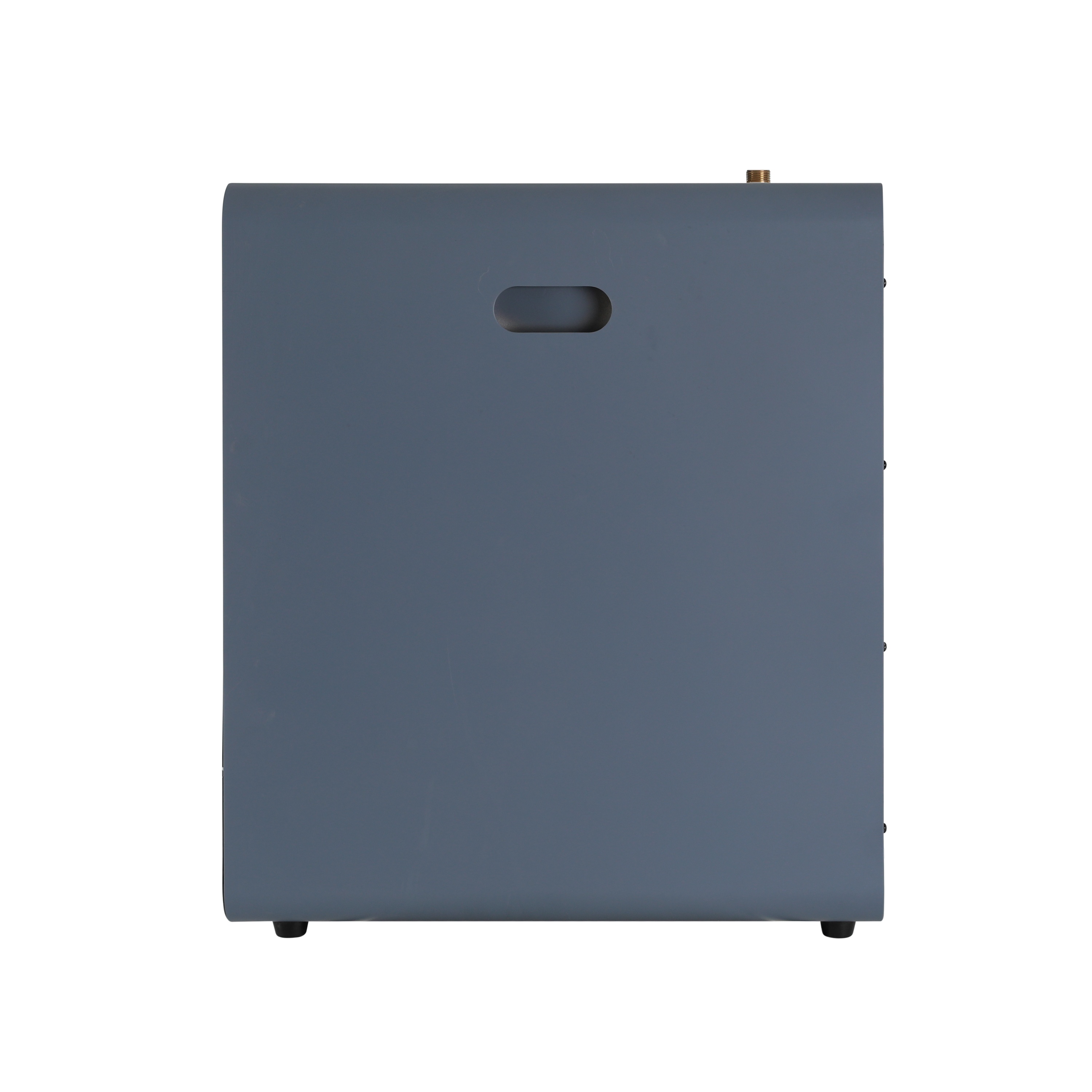

Water Purification System 3200 GDP Coffee Shop Restaurant Water Filtration System for Business

Advantages

1)3200G high water flow,without pressure barrel

2)Upside down-waterstop fitration integrated waterboard

3)Double ultrafiltration filter mutual impact structure

4)6 Filter elements,8 stages filtration

5)3200G high water flow

6)Two UF membranes wash each other to improve the life time of filter element

Key Features

• 3200G High Flow: Delivers up to 8.4 liters per minute of purified water—perfect for busy kitchens and commercial operations.

• RO Direct Drinking: Equipped with 0.0001-micron RO membrane that removes bacteria, heavy metals, and dissolved solids.

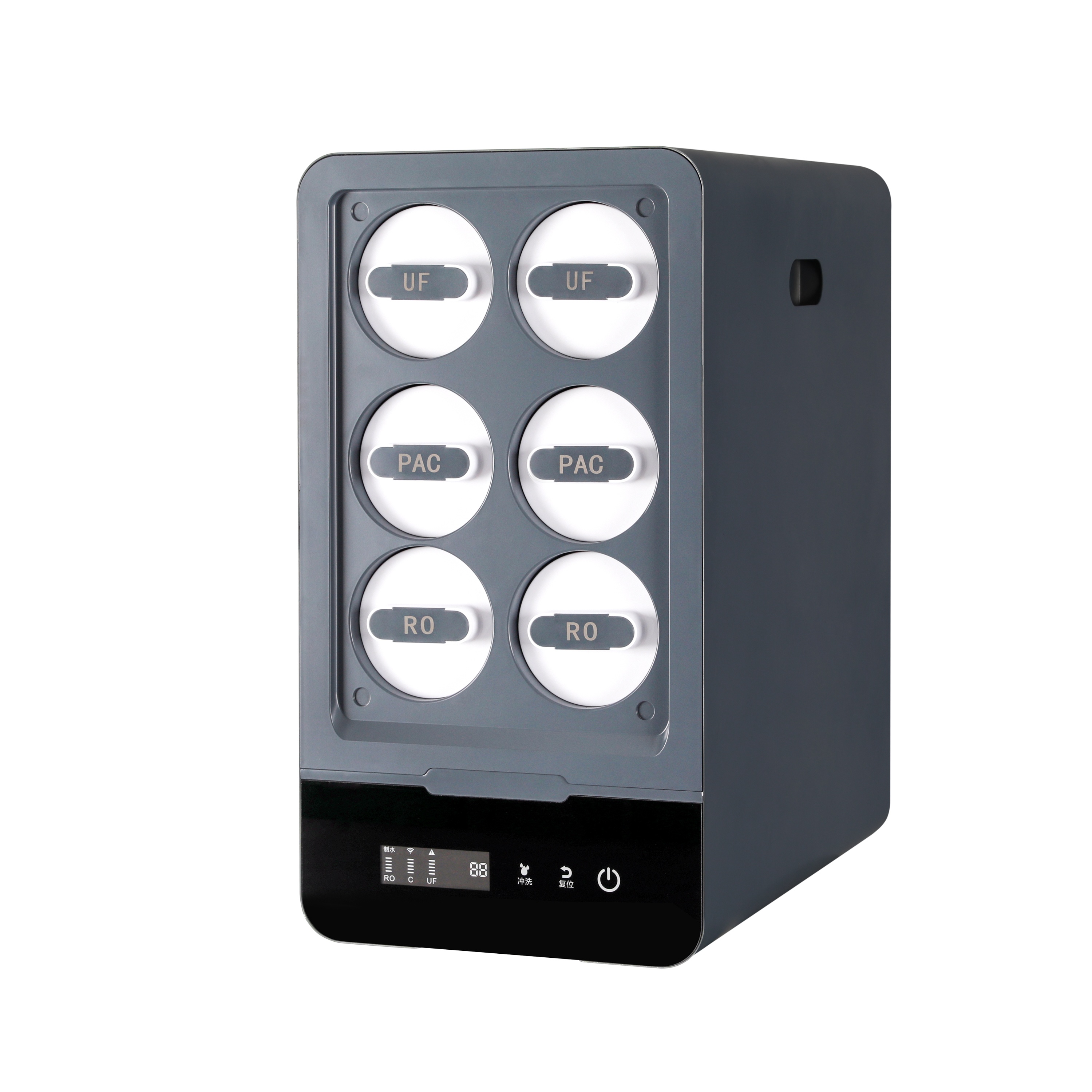

• 6 Filter Elements, 8 Stages of Filtration: Includes UF ×2, PAC ×2, RO ×2 to ensure thorough multi-layer purification.

• Dual UF Self-Washing: Unique self-cleaning technology extends filter life and maintains stable performance.

• Efficient Water Saving: 2:1 pure-to-waste ratio, eco-friendly and cost-saving.

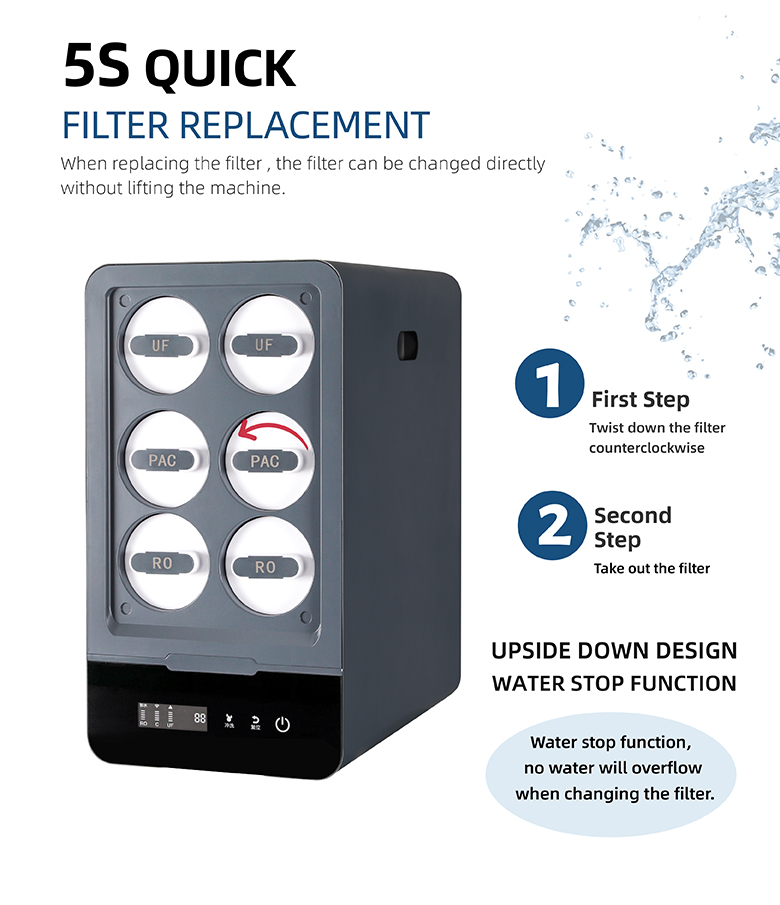

• 5-Second Quick Filter Replacement: Twist-off design for easy DIY maintenance—no water overflow, no complex tools.

• Integrated Waterway Design: Strong pressure resistance, fewer pipe joints, reduced leakage risk, and long-term stability.

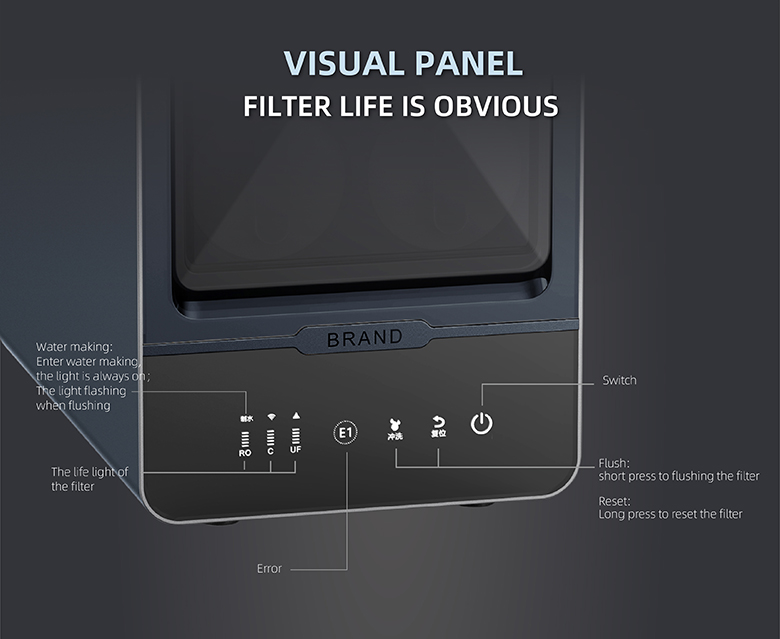

• Smart Panel with Filter Life Reminder: Visual indicators to track filter status and flushing cycles.

Product Specifications

• Model: FTP-115RO-3200G

• Size: 325 × 520 × 610 mm

• Rated Power: 350W

• Voltage: 220V

• Water Inlet Pressure: 0.1 – 0.4 MPa

• Working Pressure: 0.4 – 0.8 MPa

• Operating Temp: 5°C – 38°C

• Filtration Accuracy: 0.0001 micron

• Pure Water Flow: 8.4 L/min

• Filter Combination: UF + PAC + RO + UF + PAC + RO

• Flush Mode: Automatic flushing system

• Mounting: Free-standing / under-sink

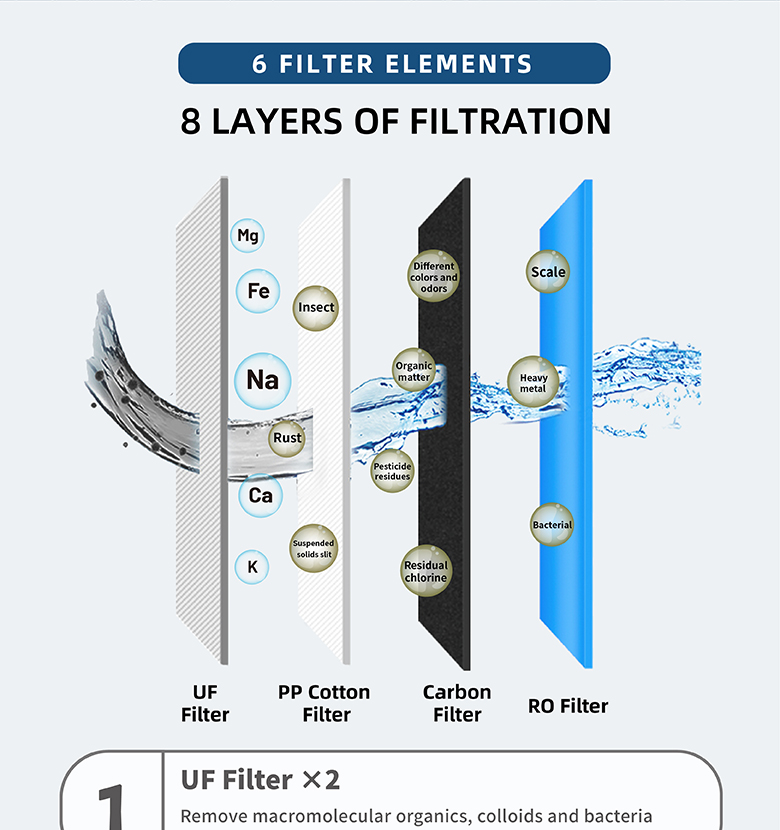

8 Stages of Filtration

1. UF Filter ×2 – Removes macromolecular organics, colloids, and bacteria.

2. PP Cotton Filter – Blocks sediment, rust, silt, and suspended solids.

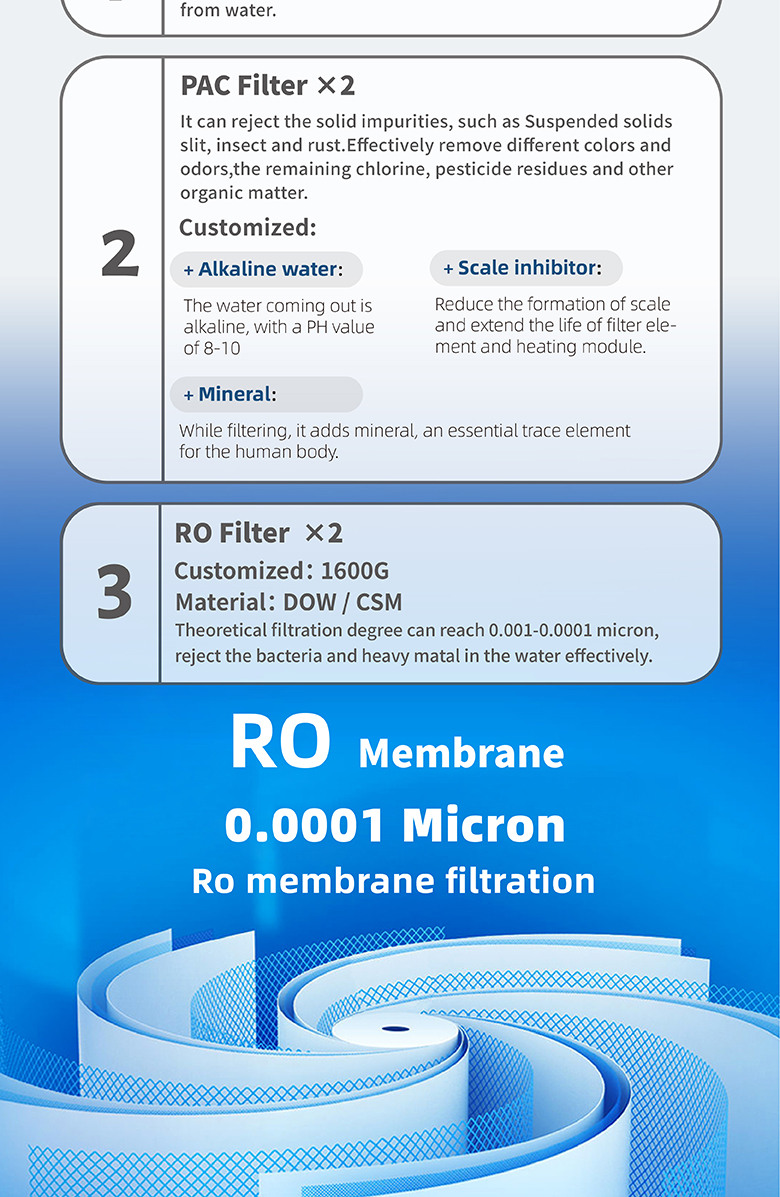

3. PAC Filter ×2 – Eliminates chlorine, odors, pesticides, and organic matter. Optional upgrades: alkaline water, mineral addition, scale inhibitor.

4. RO Filter ×2 – High-precision DOW/CSM membrane (0.0001 micron) effectively filters heavy metals, bacteria, and dissolved solids.

Applications

• Restaurants: Cooking, beverage preparation, dishwashers, ice makers.

• Coffee Shops & Tea Houses: Brewing, steaming, espresso machines, water boilers.

• Hotels & Bars: Cocktail mixing, guest service water supply.

• Whole House Use: Provides pure, safe water for daily consumption and household appliances.

Customization Options

• OEM/ODM available (logo, filter material, color, packaging).

• Flexible filter combinations to meet specific water quality needs.

Why Choose FTP-115RO-3200G?

• Ultra-high capacity for commercial-grade performance.

• Delivers safe, clean, great-tasting water on demand.

• Smart design: fast maintenance, low waste, high reliability.

• Perfect choice for businesses and families that value efficiency, safety, and sustainability.

FTP-115RO-3200G Commercial RO Water Purifier delivers ultra-high 3200G flow (8.4L/min) with dual RO membranes for direct drinking & commercial use. Features 6-stage filtration (8-layer purification, 0.0001μm), dual UF self-cleaning technology to extend filter life, and innovative integrated waterway (leak-proof, 0.3-0.4MPa pressure resistant). Includes visual panel (filter life reminder), 5-second quick-change filters, and 2:1 pure-to-waste ratio for efficiency. Customizable with logo/color/filter/alkaline/mineral options, ideal for hotels, cafes & whole-house use.
